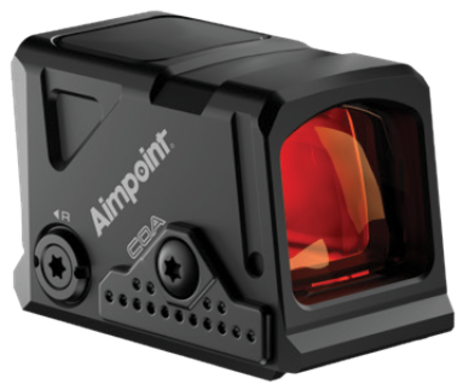

Operating Principle: Reflex collimator sight with LED

Magnification: 1X - No Magnification

Dot Size: 3.5 MOA *

Dot Color: Red

Light Source Wavelength: 650 nm red light

NVD Compatible: Yes

Operating Principle: Reflex collimator sight with LED

Magnification: 1X - No Magnification

Dot Size: 3.5 MOA *

Dot Color: Red

Light Source Wavelength: 650 nm red light

NVD Compatible: Yes

Optical Signature: No optical signature visible at 10 meter distance, front side, on appropriate settings with NVD

Optical Coating: Anti-reflex coating all surfaces and multilayer coating objective lens

Clear Aperture: 15 × 15 mm / 0.59 × 0.59 in

Eye Relief: Unlimited

Transmission: Minimum 80% in the range 425 - 610 nm *

Size LxWxH: 45x28x30mm / 1.8x1.1x1.2in

Weight (sight incl battery): 48 g / 1.7 oz *

Housing Color: Black

Housing Surface Finish: Anodized, semi-matte

Housing Material: 7075-T6 High Strength Aluminum

Lens Covers: TBD

Height of Optical Axis: Co-witness capable with standard Glock iron sights

Adjustment Range: ±1 m at 100 m / ±1 yd at 100 yds

Adjustment: 1 Click = 6 mm at 20 m / 0.24 in at 20 yds

Battery Type: CR2032, 3V, Lithium

Battery Life: 50,000 h at daylight setting 7 (15,000 Lux, room temperature)

Power Intensity: 4 * NVD and 8 * Daylight, of which 1 extra bright

Power Switch: Push Buttons

Start setting: 8 of 12 *

Submersible: 25 m / 80 ft

Temperature Range Operation: - 45°C to + 71°C / - 49°F and + 160°F

Temperature Range Storage: - 51°C to + 71°C / - 60°F and + 160°F

Temperature Shock: Operable after a temperature shock between -45°C and +71°C / -49°F and +160°F

Shock: Operable before & after shock limits: Tested with 40,000 rounds mounted on a 9 mm caliber pistol slide

Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C / +68°F to +122°F, cyclic

Vibration: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz, 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.

Chemical Resistance: Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellent.

Mounting Solution: Integrated A-CUT interface, a new patented standard mounting solution

Torque – Mount to Sight: 2.0 Nm / 18 in-lbs
